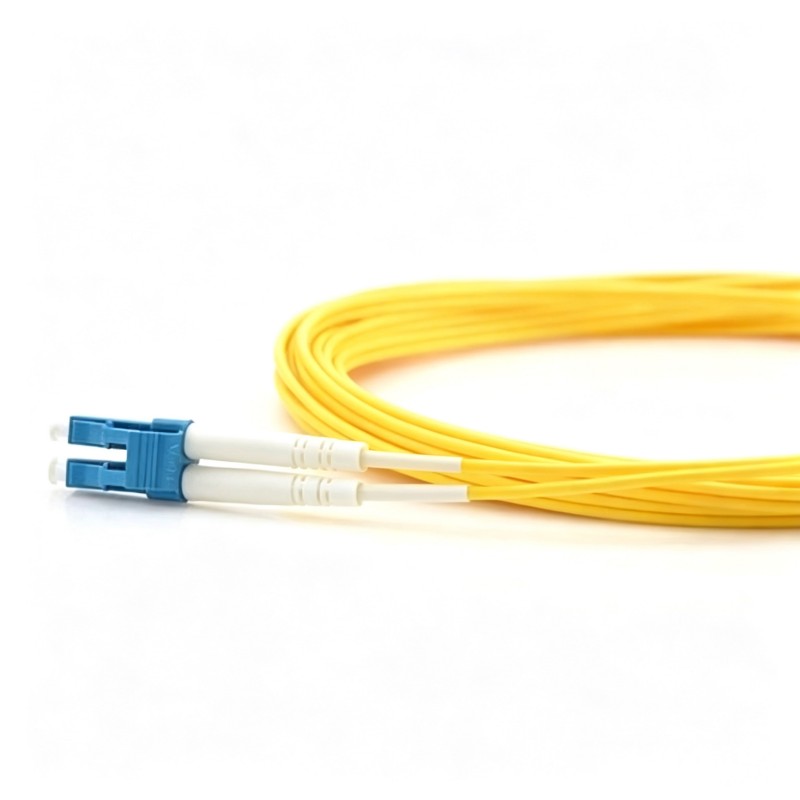

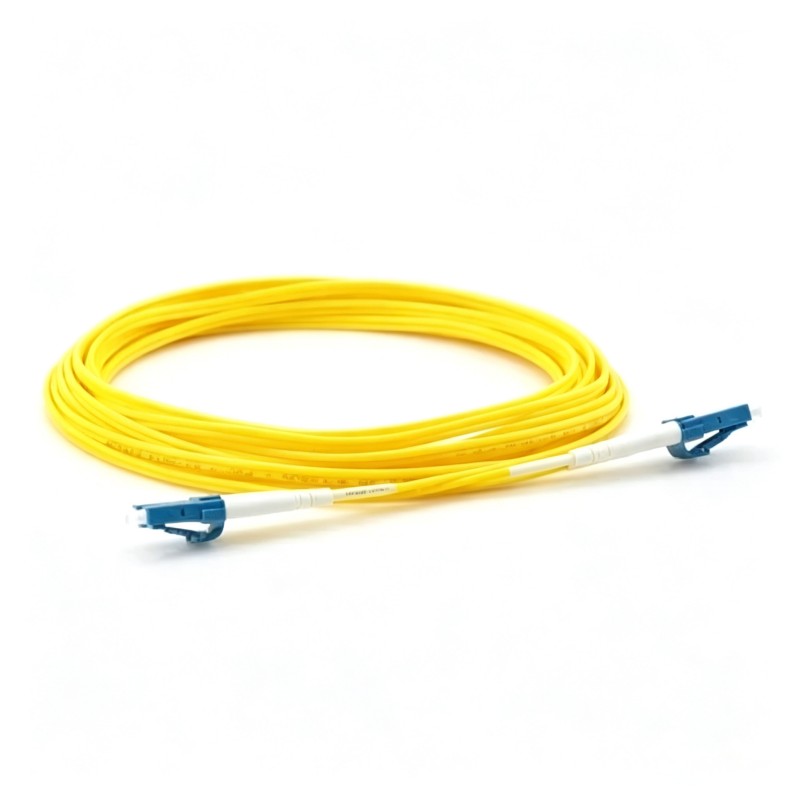

LC/UPC to LC/UPC Duplex OS2 Single Mode Fiber Patch Cable

Name: LC/UPC to LC/UPC Duplex OS2 Single Mode Fiber Patch Cable
Brand: Fiberluma.com
SKU: 10236

P/N: SM-LC-LC-DX-FASKU: 10236

Be the first to review

Fiber Length

Fiber Grade

Cable Diameter

Cable Jacket

Cable Color

Yellow

Total Price

$3.00

$3.00 / unit

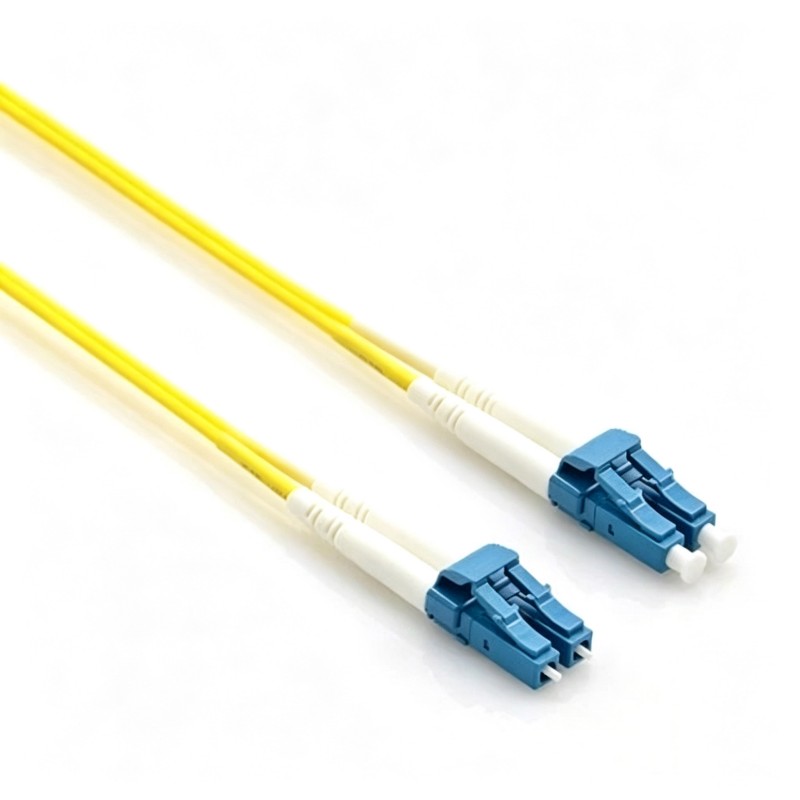

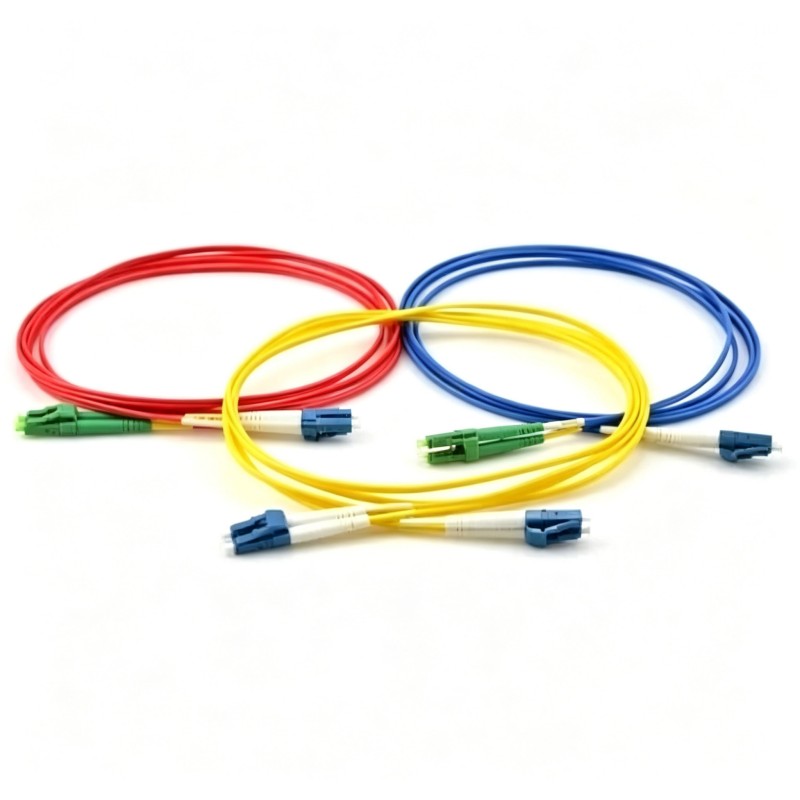

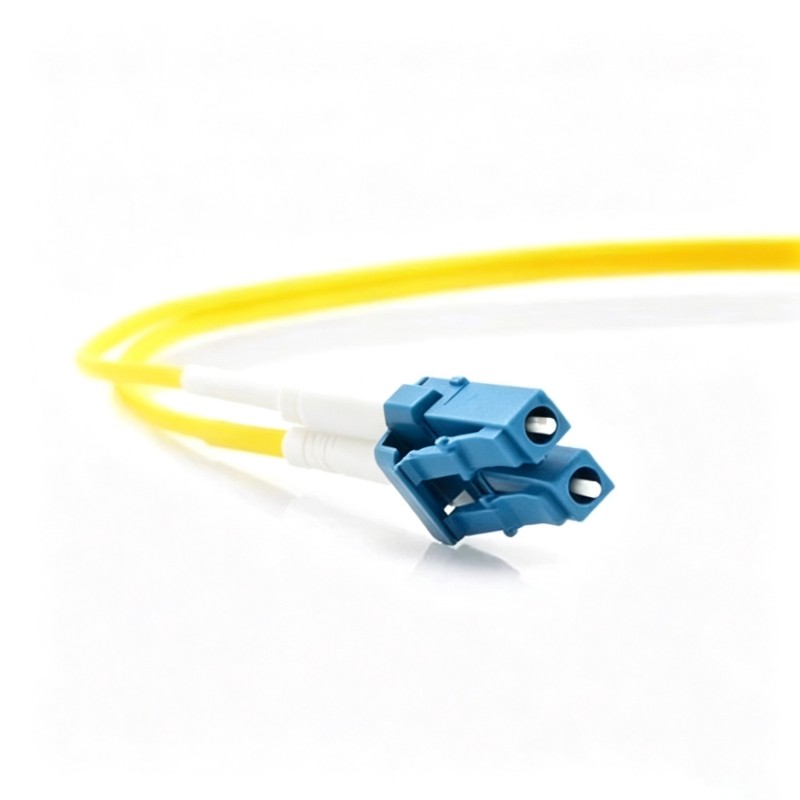

LC UPC to LC UPC Duplex OS2 9/125um Singlemode LC Fiber Cable, Duplex LC Patch Cable

Fiber patch cables, also known as fiber jumpers or fiber optic patch cords, are essential components used for connecting fiber optic equipment and network systems. Fiberluma provides high-quality fiber patch cables, including duplex LC fiber cables, designed for reliable and efficient fiber optic connectivity.

LC fiber patch cables are among the most widely used fiber optic cable assemblies in modern optical networks due to their compact design, low insertion loss, and excellent performance.

The term "mode" in multimode fiber refers to the different paths through which light travels within the fiber core. Multimode fiber patch cables transmit multiple light modes and are typically used for shorter-distance applications.

Singlemode fiber patch cables allow a single mode of light propagation through the fiber core, resulting in lower attenuation and longer transmission distances compared with multimode fiber. Standard singlemode fiber is specified as 9/125 μm (core/cladding diameter).

Fiberluma’s duplex LC singlemode fiber cables are suitable for high-speed networking applications and can support Gigabit Ethernet transmission distances of up to 10 km when paired with compatible optical transceivers.

Key Features

LC-LC Connectors
Singlemode Duplex fiber optic cable
Micron: 9/125um
Complete with Lucent Technologies aqua jacket
Bandwidth transmitting rates up to 10 gigabits
All of our fiber optic patch cables feature the high degree connectors
100% optically tested to ensure high performance
Color: Yellow

Specifications

Specification	Unit	FC, SC, LC				ST, MU			MT-RJ, MPO			E2000
		Singlemode			Multimode	Singlemode		Multimode	Singlemode		Multimode	Singlemode
		PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC	PC	APC
Insertion loss	dB	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35	≥55	≥65
Wavelength	nm	1310, 1550				1310, 1550			1310, 1550			1310, 1550
Interchangeability	dB	≤0.2				≤0.2			≤0.2			≤0.2
Vibration	dB	≤0.2				≤0.2			≤0.2			≤0.2
Operating temperature	℃	-40~75				-40~75			-40~75			-40~75
Storage temperature	℃	-45~85				-45~85			-45~85			-45~85
Cable diameter	mm	φ3.0,φ2.0,φ0.9				φ3.0,φ2.0,φ0.9			φ3.0,φ2.0,φ0.9			φ3.0,φ2.0,φ0.9

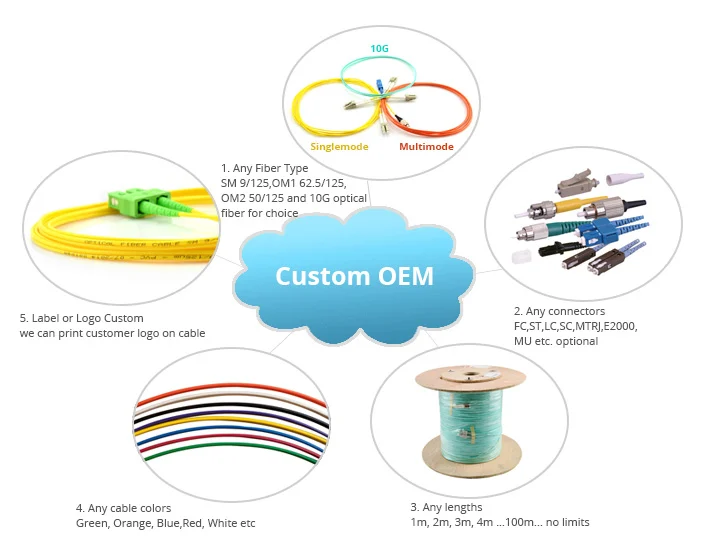

Custom & OEM

mceu 54581692411784647729786

Fiberluma is manufacturer and supplier of fiber optic cable, fiber patch cable. If you have any special requirement, Please contact us by email to [email protected]

1. Customize Jacket Materials

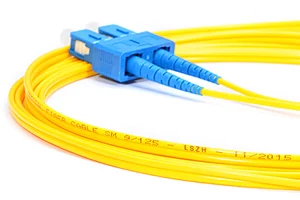

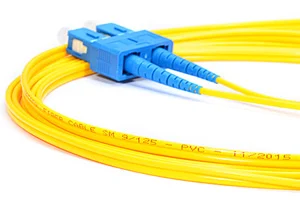

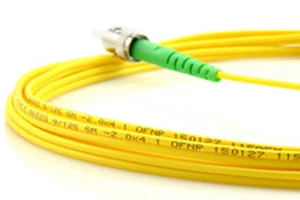

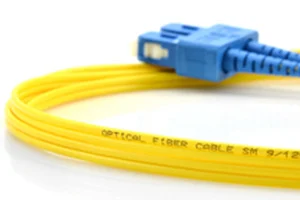

PVC	OFNP	LSZH	OFNR

2. Customize Cable Color

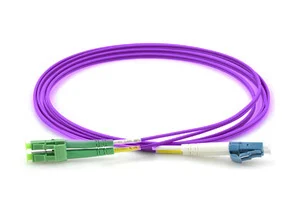

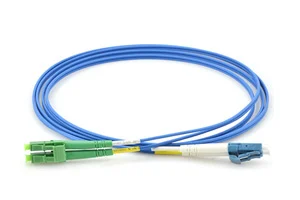

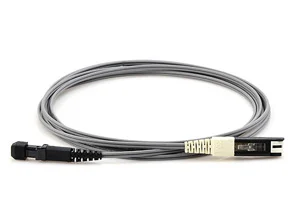

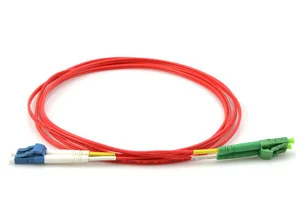

Red	Blue	Grey	Purple

3. Customize Cable Connector

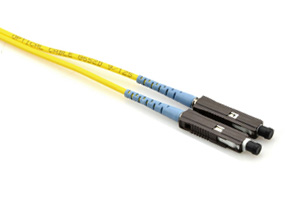

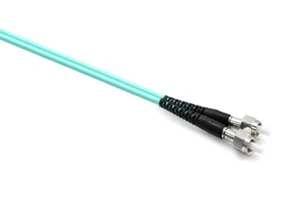

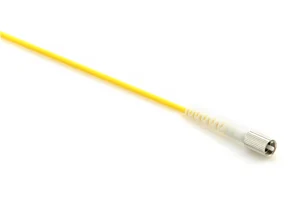

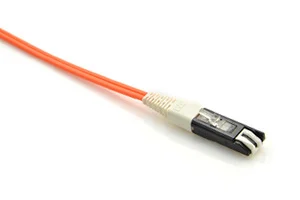

D4	SMA905	VF45	MU

4. Customize Cable Length

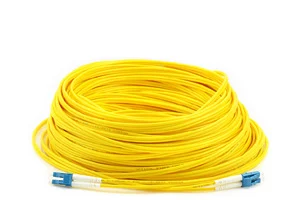

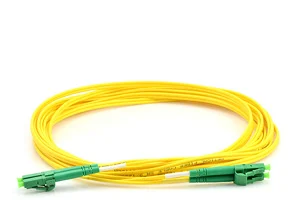

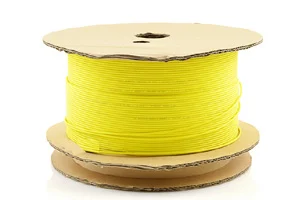

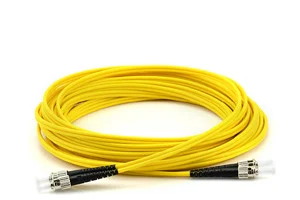

5M	10M	50M	100M

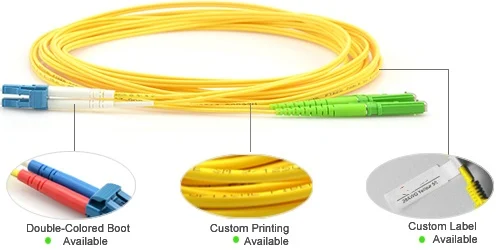

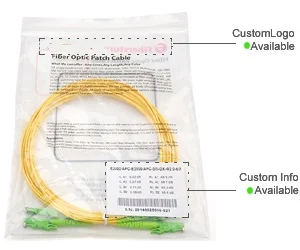

5. OEM Label, Printing and Boot Color

NOTE: If you need customize others, welcome to contact [email protected]

Fiber Type vs. Speed and Distance - Help you choosing the right Fiber Optic Cable Type

Designation	Core/Cladding Diameter(um)	Type	Gigabit Ethernet Distance(meters)	10 Gigabit Ethernet Distance(meters)
OM1	62.5/125	Multimode	300 Meters at 850 nm 600 Meters at 1310 nm	33 Meters at 850 nm 300 Meters at 1310 nm
OM2	50/125	Multimode	600 Meters at 850 nm 600 Meters at 1310 nm	82 Meters at 850 nm 300 Meters at 1310 nm
OM3	50/125	Multimode	1000 Meters at 850 nm 600 Meters at 1310 nm	300 Meters at 850 nm 300 Meters at 1310 nm
OM4	50/125	Multimode	1040 Meters at 850 nm 600 Meters at 1310 nm	550 Meters at 850 nm 300 Meters at 1310 nm
SM	9/125	Singlemode	5 km at 1310 nm 5 km at 1550 nm	10 km at 1310 nm 10 km at 1550 nm
