SC/APC to SC/APC Simplex OS2 Single Mode Fiber Patch Cable

P/N: SM-SCA-SCA-SX-FASKU: 10238

Be the first to review
Cable Color

Total Price

$1.50

$1.50 / unit

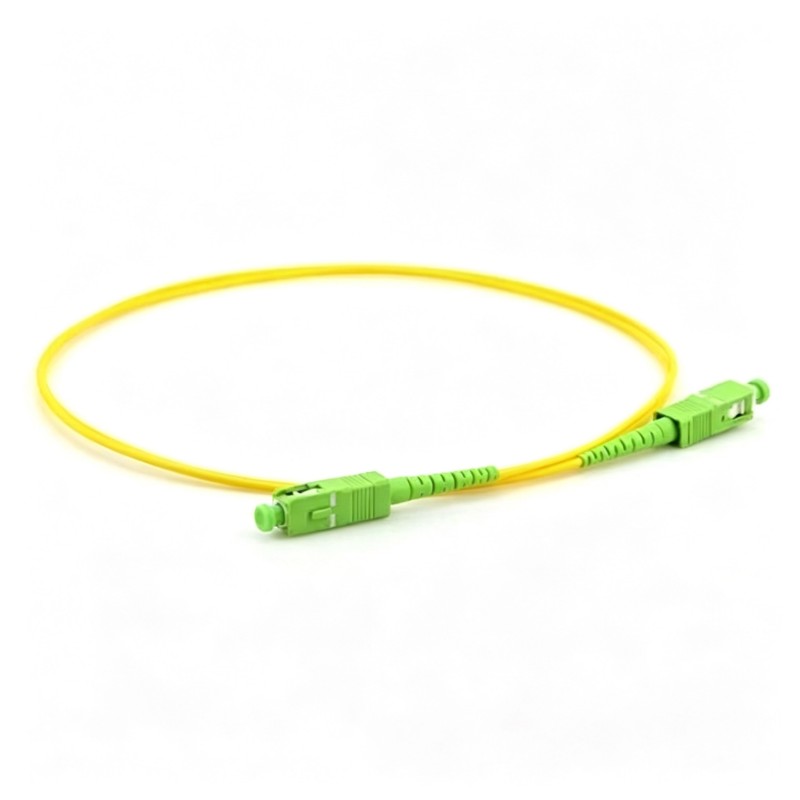

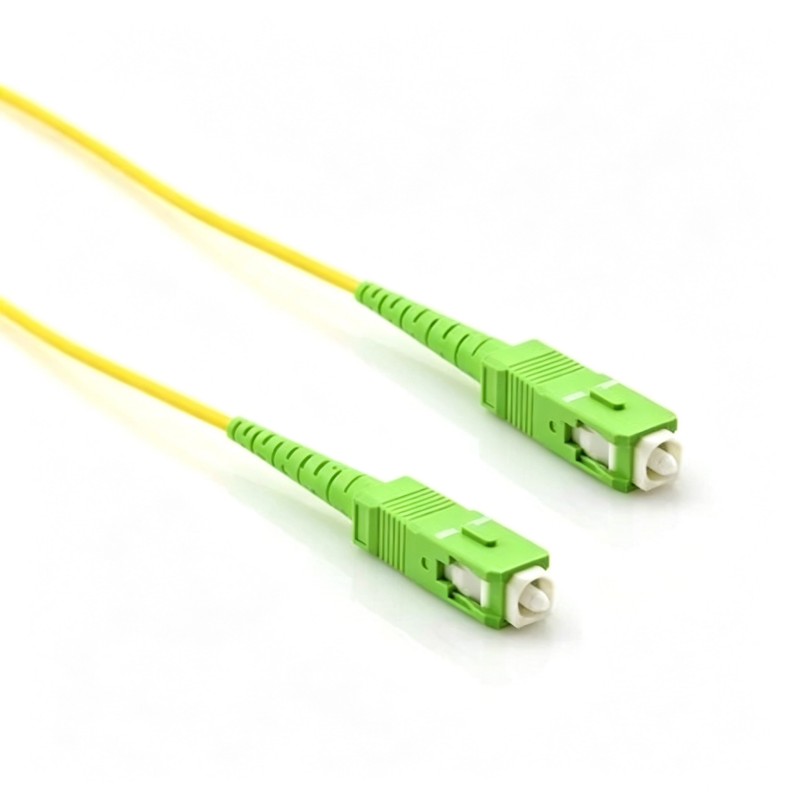

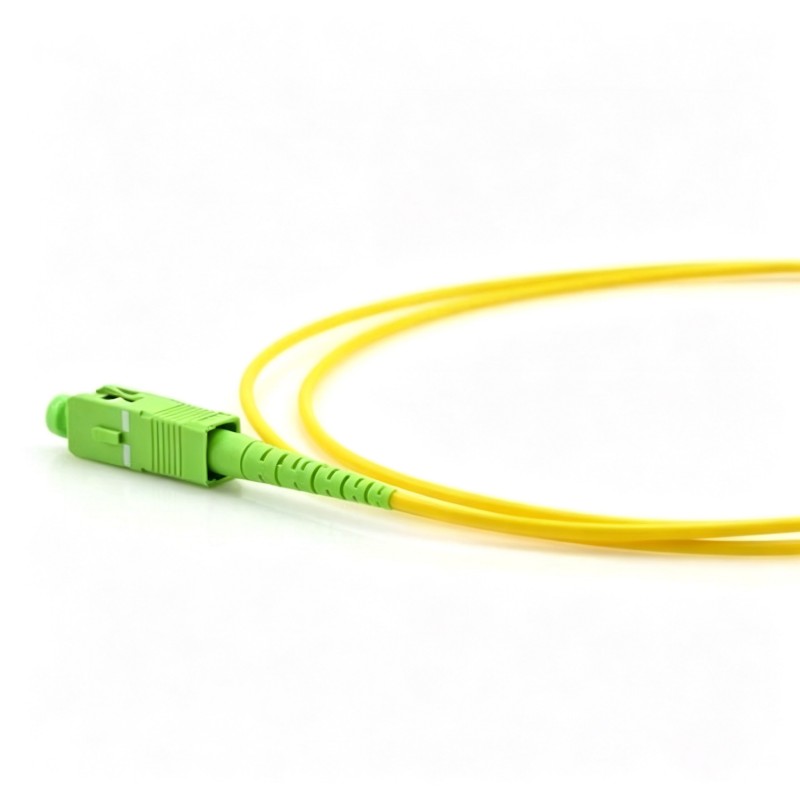

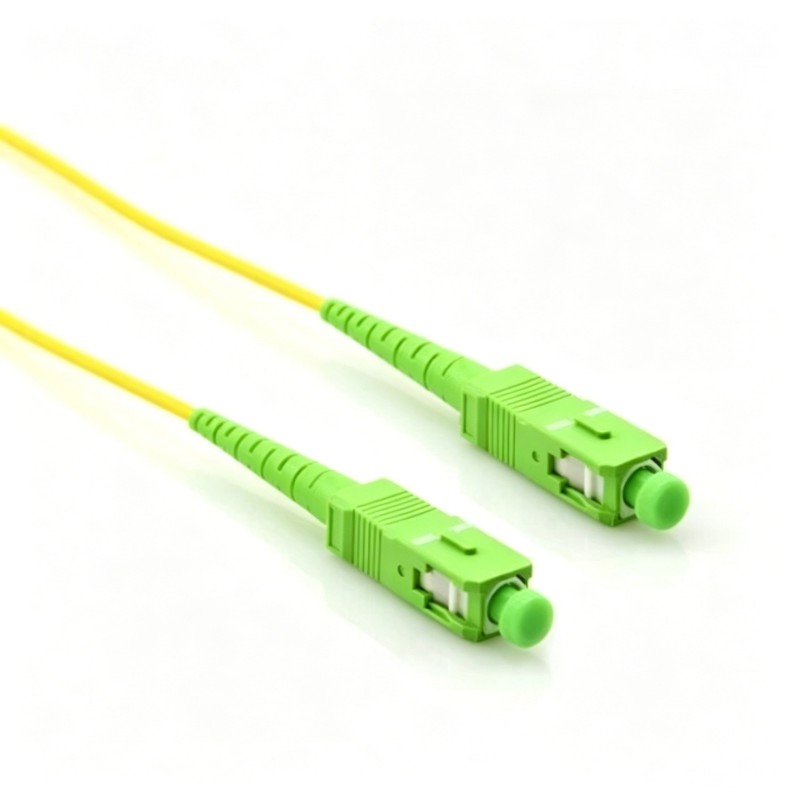

SC/APC to SC/APC Simplex OS2 9/125um Single Mode Fiber Patch Cable, Simplex SC APC Patch Cable

Fiberluma’s SC/APC to SC/APC Simplex OS2 Single Mode Fiber Patch Cable is designed for high-performance fiber optic networks requiring low insertion loss, excellent return loss, and reliable signal transmission over long distances. Featuring SC/APC connectors on both ends and OS2 single mode fiber, this simplex patch cable provides superior optical performance for telecommunications, data centers, FTTH, CATV, and other high-speed networking applications.

The SC/APC angled polish connector design minimizes back reflection and ensures stable connections in applications where signal integrity is critical. Built with high-quality OS2 9/125μm single mode fiber, this cable supports long-distance transmission with low attenuation and excellent bandwidth performance.

Each Fiberluma fiber patch cable is factory tested to ensure consistent quality and compatibility with standard fiber optic equipment. Available in various lengths and jacket options, the SC/APC to SC/APC Simplex OS2 Single Mode Fiber Patch Cable is an ideal solution for reliable fiber optic connectivity in modern network infrastructures.

Key Features

  • SC/APC to SC/APC Connectors
  • Single-mode simplex fiber optic cable
  • Complete with orange OFNR rated riser/jacket
  • All of our fiber optic patch cables feature the high degree connectors
  • 100% optically tested to ensure high performance
  • Micron: 9/125um
  • Color: Yellow

Specifications

Specification Unit FC, SC, LC ST, MU MT-RJ, MPO E2000
Singlemode Multimode Singlemode Multimode Singlemode Multimode Singlemode
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss dB ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥65
Wavelength nm 1310, 1550 1310, 1550 1310, 1550 1310, 1550
Interchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature ℃ -40~75 -40~75 -40~75 -40~75
Storage temperature ℃ -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9

Custom & OEM

mceu 54581692411784647729786

Fiberluma is manufacturer and supplier of fiber optic cable, fiber patch cable. If you have any special requirement, Please contact us by email to [email protected]

1. Customize Jacket Materials

PVC Cable OFNP Cale LSZH Cable OFNR Cable
PVC OFNP LSZH OFNR

2. Customize Cable Color

Red Cable Blue Cable Grey Cable Purple Cable
Red Blue Grey Purple

3. Customize Cable Connector

D4 Connector SMA Connector VF45 Cable MU Cable
D4 SMA905 VF45 MU

4. Customize Cable Length

5M Cable 10M Cable 50M Cable 100M Cable
5M 10M 50M 100M

5. OEM Label, Printing and Boot Color

OEM Label Printing and Boot Color 1 OEM Label Printing and Boot Color 2

NOTE: If you need customize others, welcome to contact [email protected]

Fiber Type vs. Speed and Distance - Help you choosing the right Fiber Optic Cable Type

Designation Core/Cladding
Diameter(um)		 Type Gigabit Ethernet
Distance(meters)		 10 Gigabit Ethernet
Distance(meters)
OM1 62.5/125 Multimode 300 Meters at 850 nm
600 Meters at 1310 nm		 33 Meters at 850 nm
300 Meters at 1310 nm
OM2 50/125 Multimode 600 Meters at 850 nm
600 Meters at 1310 nm		 82 Meters at 850 nm
300 Meters at 1310 nm
OM3 50/125 Multimode 1000 Meters at 850 nm
600 Meters at 1310 nm		 300 Meters at 850 nm
300 Meters at 1310 nm
OM4 50/125 Multimode 1040 Meters at 850 nm
600 Meters at 1310 nm		 550 Meters at 850 nm
300 Meters at 1310 nm
SM 9/125 Singlemode 5 km at 1310 nm
5 km at 1550 nm		 10 km at 1310 nm
10 km at 1550 nm
